Scattering Theory: Intensity, Form Factor, and Structure Factor

This summary provides a comprehensive overview of the relationship between Scattering Intensity, the Form Factor, and the Structure Factor, as applied to soft matter, polymers, and supercritical fluids.

The Fundamental Scattering Equation

In any scattering experiment (X-ray, Neutron, or Light), the measured intensity $I(q)$ is the product of how many particles are present, how each particle scatters individually, and how they are arranged relative to one another.

The general relationship is expressed as:

$$I(q) = N \cdot P(q) \cdot S(q)$$

Variable Definitions

• $q$ (Scattering Vector): Defined as $q = \frac{4\pi}{\lambda} \sin(\theta/2)$, representing the momentum transfer.
• $N$: The number of scattering centers in the sample volume.
• $P(q)$ (Form Factor): The “Self-Term.” It describes the size, shape, and internal density distribution of an individual particle.
• $S(q)$ (Structure Factor): The “Inter-Term.” It describes the spatial arrangement and correlations between different particles.

The Form Factor $P(q)$

The form factor is the Fourier transform of the particle’s internal density distribution. It is normalized such that $P(0) = 1$. It reveals the morphology of the scatterers.

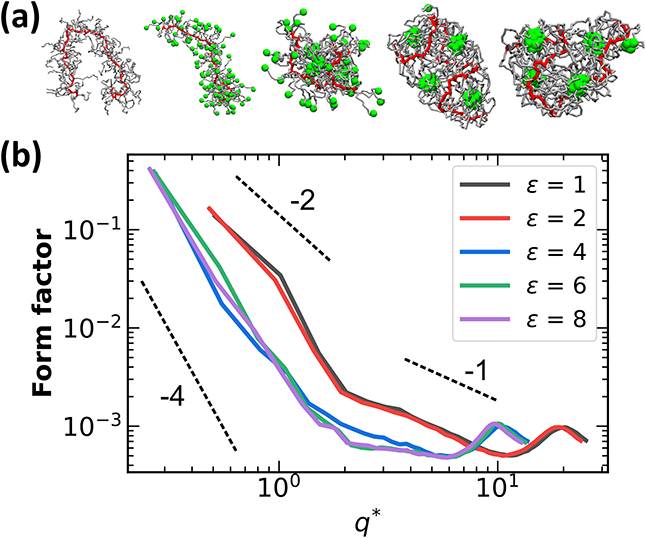

Typical Form Factors for Common Geometries: Scaling Regimes (Porod Slopes)

On a log-log plot ($I(q)$ vs $q$), the slope in the high-$q$ region reveals the fractal dimension $D$:

• Slope $\approx -1$: Rigid Rods (1D objects).
• Slope $\approx -2$: Gaussian Coils or flat disks (2D objects).
• Slope $\approx -4$: Smooth 3D surfaces with sharp interfaces (Porod’s Law).

The Structure Factor $S(q)$

The structure factor accounts for the interference of waves scattered by different particles. It is the Fourier transform of the pair correlation function $g(r)$.

• Dilute Systems: $S(q) \approx 1$. Particles are far apart; inter-particle interference is negligible.
• Concentrated Liquids: Shows a “First Sharp Diffraction Peak” corresponding to the average neighbor distance $d \approx 2\pi / q_{peak}$.
• Crystals: Exhibits sharp Bragg peaks representing long-range periodic order.

The Low-$q$ Limit and Thermodynamics

As $q \to 0$, $S(q)$ provides a direct link to the macroscopic properties of the fluid:

$$S(0) = \rho k_B T \kappa_T$$

where $\rho$ is number density and $\kappa_T$ is the isothermal compressibility. In supercritical fluids near the critical point, $S(0)$ diverges, leading to critical opalescence.

The Ornstein-Zernike (OZ) Framework

To analyze fluids near phase transitions or in the supercritical state, the intensity is often modeled by the OZ equation for the low-$q$ regime:

$$I(q) = \frac{I(0)}{1 + \xi^2 q^2}$$

Extracted Parameters

1. Correlation Length ($\xi$): The spatial extent of density or concentration fluctuations.
2. Zero-Angle Intensity ($I(0)$): Proportional to the susceptibility or compressibility of the system.

By plotting $1/I(q)$ vs $q^2$, one can obtain a straight line where the slope and intercept allow for the calculation of $\xi$. This is a standard method for comparing Molecular Dynamics (MD) simulations with experimental X-ray or Neutron data.

Summary of Structural Information by $q$-Range

Range	Analysis Method	Information Gained
Low $q$ ($qR_g < 1$)	Guinier / OZ Plot	Radius of Gyration $R_g$, Correlation Length $\xi$, Compressibility $\kappa_T$
Mid $q$ ($q \approx 1/d$)	Peak Analysis	Inter-particle distances, Coordination number, Packing
High $q$ ($qR_g > 3$)	Porod / Power Law	Surface fractal dimension, Internal molecular structure ($\omega(q)$)
